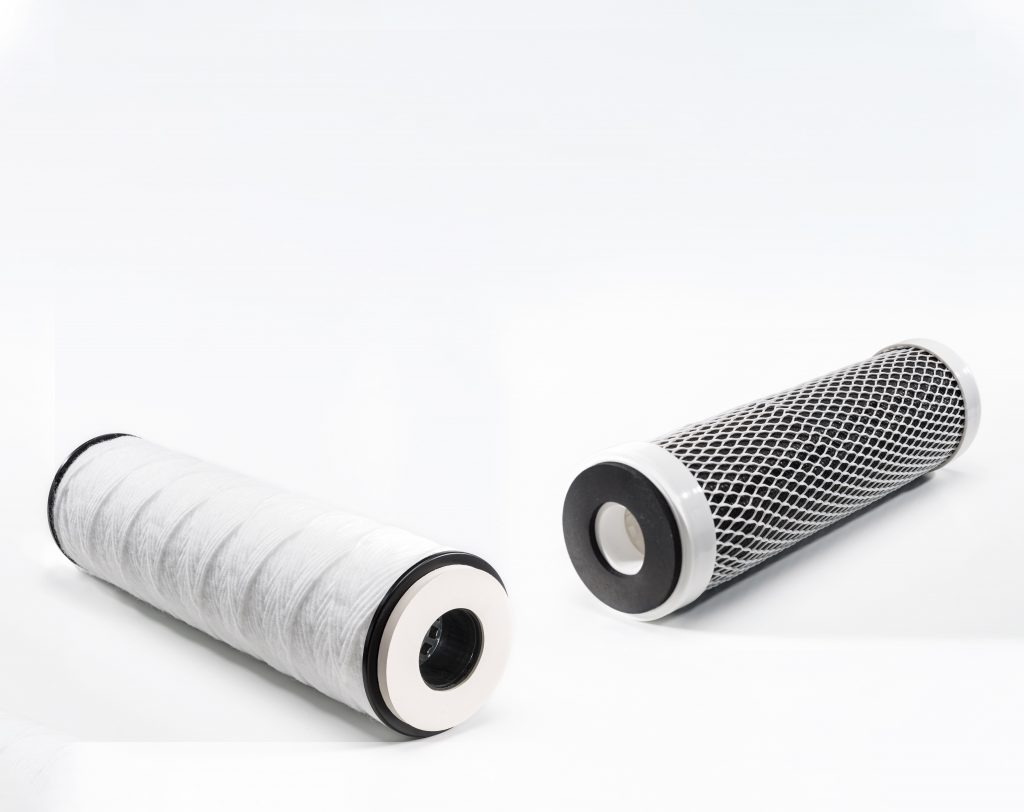

Carbon Wrap Filter Cartridges
The Carbon Wrap (CW) series features powder activated carbon (PAC) impregnated into a cellulose fibre media, removing sediments and other fine particulates throughout its depth. The CW series combines the advantages of both a high dirt-loading depth cartridge with the odour, discolouration and chlorine reduction capabilities of PAC.
The carbon impregnated sheet is wrapped around a polypropylene support core, supported by an outer layer of polyethylene netting.
- 9 ¾” – 40” lengths. Standard I.D. 28 mm, O.D. 64mm.
- Available in large diameter 116mm 9¾” and 20″ lengths for reduced cartridge changeout frequency.
- Rating: 5 micron.
- End caps : Double open ended with EPDM gaskets, Code 3,Code 7 or Code 8.
- Maximum operating temperature 80o
- 5 Bar maximum dP.
Please contact us for further information or view our range of Filter Cartridges.
