Filterhus för filterpatroner
Allied Filter Systems tillverkar och tillhandahåller omfattande utbud av filterhus som passar alla standardtyper av patroner. Patronerna kan vara melt blown, string-wound, resin bonded, veckade och i metall.
LV1 Seriens single patronfilterhus
LV1-seriens Singel patronfilterhus består av ett investeringsgjutet huvud med 1” BSP (F) inline-anslutningar och 1/8” BSP (F) ventil, en snabbkopplingsklämma och en skål med ¼” BSP (F) bottenplugg.
CH och CHD Seriens Multi patronfilterhus
Multipatronfilterhusen har en universell bottenkopp för att passa patroner med dubbel öppen ände, kod 8 (222 o ringar/fena) eller kod 3 (222 o ringar / platt). Vår kärldesign ger därför mångsidighet – genom att helt enkelt byta ut patronens topptätningskomponenter kan kärlet konverteras för att passa antingen dubbla öppna patroner eller för att passa kod 3 och 8 patroner. För användning med dubbla öppna patroner är kärlen försedda med en kopp- och fjäderkomponent som uppnår både toppförsegling och placering av patronkärnan, och en kompressionsplatta.
Plastic Cartridge Housings
Plastic Housings – For applications involving non-aggressive fluids, these are a low cost, small sized single cartridge housings to suit 10″ or 20″ cartridges. They consist of a polypropylene body and screw on lid which forms a leak proof seal by compression of an o ring. The body can either be opaque or clear. 1/2″ – 1 1/2″ BSP screwed inline connections are available as standard. An optional pressure release button is available on the inlet port. Available accessories include spanners and mounting brackets.

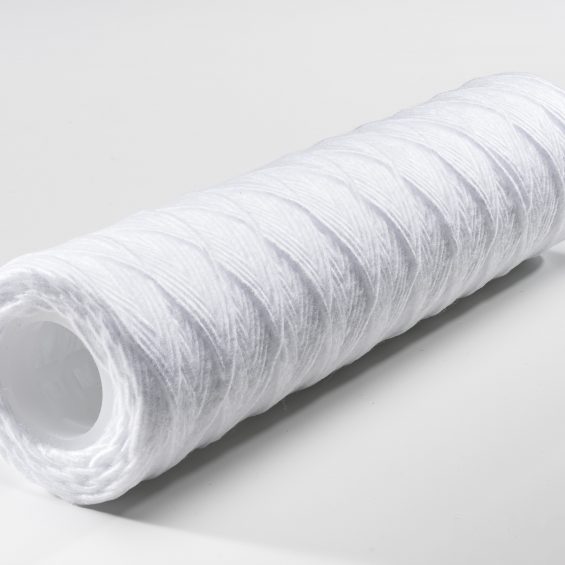

Wound Filter Cartridges
Wound filter cartridges are economical, nominal rated depth filters. They are produced from a continuous fibre yarn spirally wound around a central support core. The computer controlled winding pattern ensures precise, reliable and repeatable particle removal performance. Wound filters feature a graded density construction, enabling progressively smaller particles to be captured through the depth of the filter media

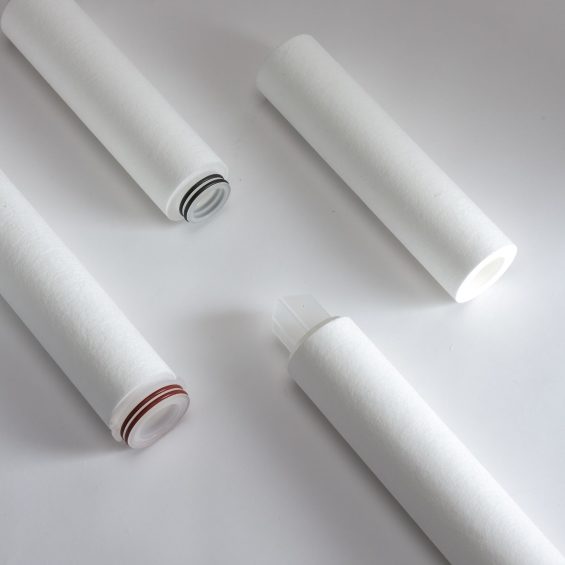

Proxis Melt Blown Cartridges
Proxis cartridges have a 100% polypropylene construction, and feature an inner core to enhance mechanical strength. They have a graded density structure, and have no contaminant downloading even at high differential pressures.

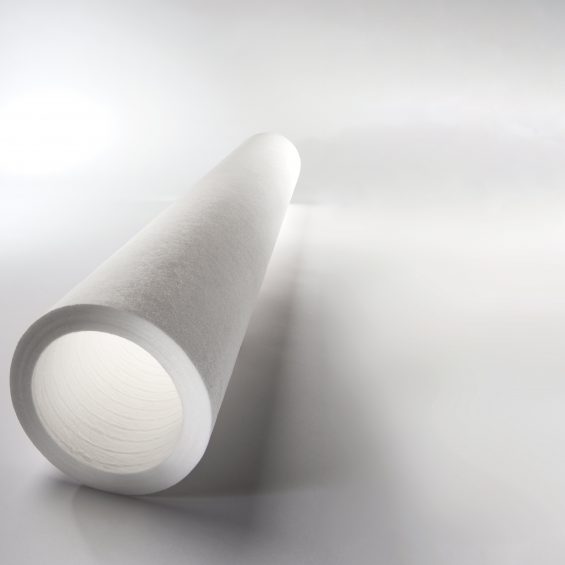

Proxis HF Melt Blown Cartridges
Proxis HF are designed to perform depth filtration whilst handling a high flow-rate. They feature a two zone filtration structure where a pre-filter and final filter are combined in a single element.The large internal diameter minimizes differential pressure and consequentially a reduced number of elements compared to using conventionally sized cartridges is required for large flow rate applications

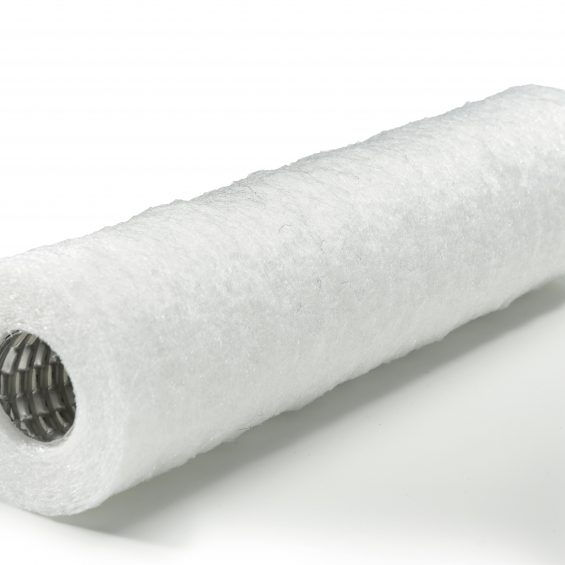

Proxis N Series Cartridges
Proxis N series cartridges are nominal rated with a particle removal efficiency of 95% at the designated micron rating. Manufactured from 100% Nylon fibres, they are ideally suited to applications such as filtration of solvents, solvent based paints and coatings and petrochemicals.

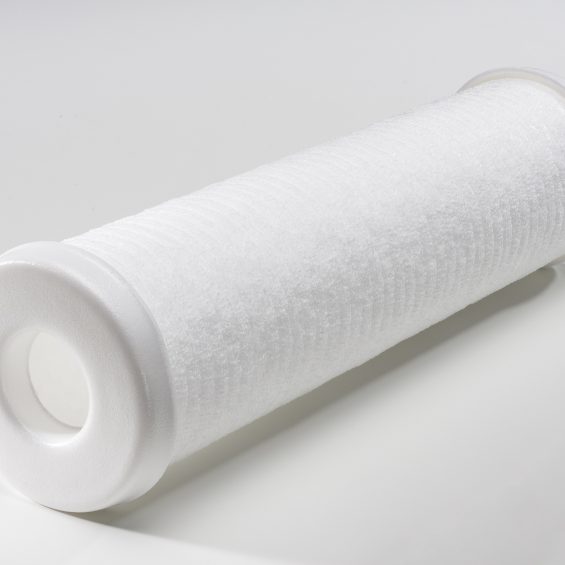

HC Series Melt Blown Cartridges
The HC series is a depth filter which is used for particle size classification. The construction incorporates rigid support materials which prevent media deformation under high differential pressures, providing stable performance and flow rates. The graded density polypropylene media ensures a long service life.

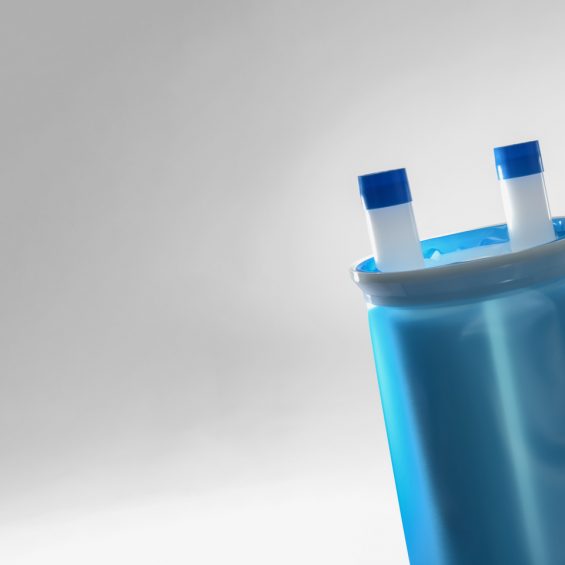

Paint Pack Cartridge Filter Systems
The innovative Paint Pack Cartridge filter system is an enclosed cartridge filter unit within a sealed outer bag. Whilst it is most commonly used in the paint industry, it is suitable for many applications which desire an enclosed, ready to use unit for reasons of user safety, cleanliness, hygiene and toxicity.

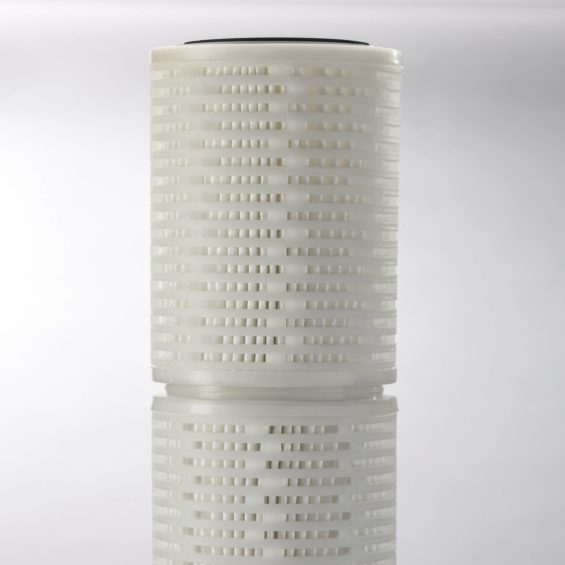

Top-Pleat Pleated Filter Cartridges
Pleated filter cartridges are surface filters for removing hard, non-deformable particles from a liquid stream. They feature a large filter area, a high dirt holding capacity and consequently a long filtration lifetime.

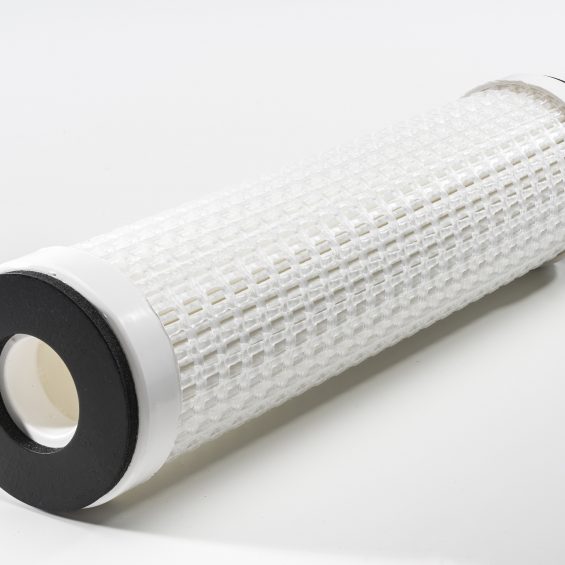

Pleated Filter Cartridges
Pleated filter cartridges are surface filters for removing hard, non-deformable particles from a liquid stream. They feature a three layer construction giving a high dirt holding capacity and consequently a long filtration lifetime.

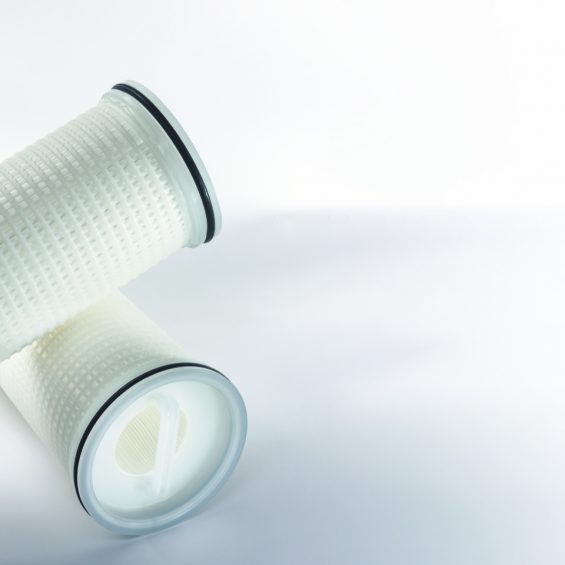

High Flow Pleated Filter Cartridges
High flow pleated cartridges combine the best of pleated and large diameter cartridges. The unique multi-layered construction provides absolute rated particle retention across a wide range of flow rates with efficiencies of 99.98% at the designated micron rating.

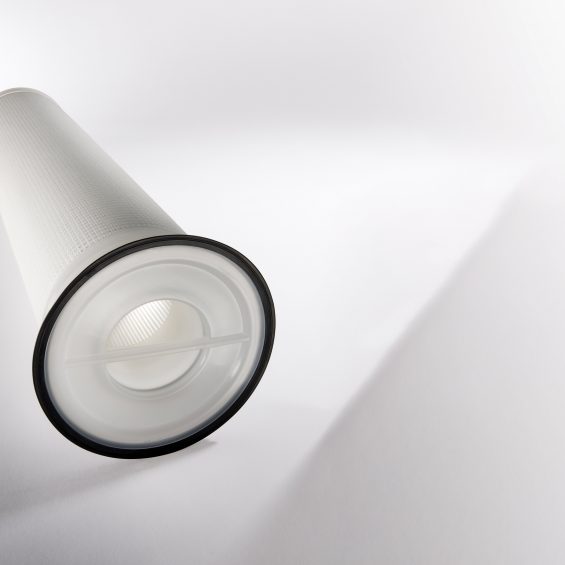

Multifine Filter Cartridges
The Multifine series pleated filter cartridge is designed to fit into industry standard filter bag housings without the need for any modification to the existing equipment. The high surface area provides a high flow rate and dirt holding capacity with a low pressure drop.

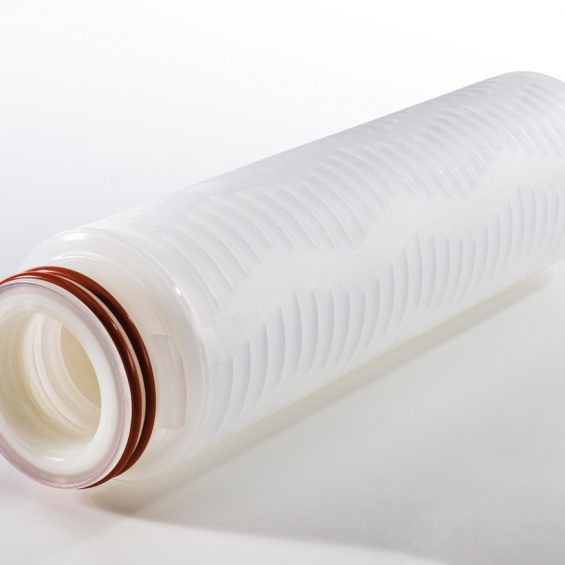

PES Membrane Filter Cartridges
Polyethersulphone membrane filter cartridges are designed to provide reliable sterilizing filtration for a wide variety of applications including water filtration, removal of spoiling micro-organisms in beverages, and filtration of pharmaceutical products.

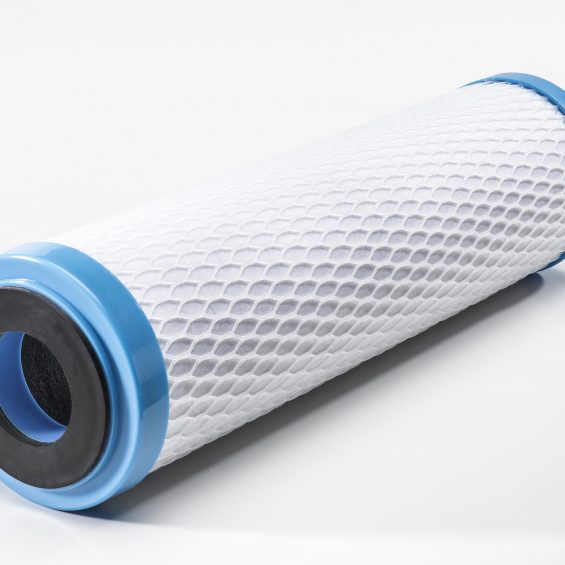

ECB and SCB Carbon Filter Cartridges
The ECB series uses the latest carbon manufacturing techniques making it the economic choice for a wide range of industrial water applications.
The SCB series is manufactured using fine, acid washed, bituminous powder activated carbon (PAC), greatly increasing surface area and cartridge life.

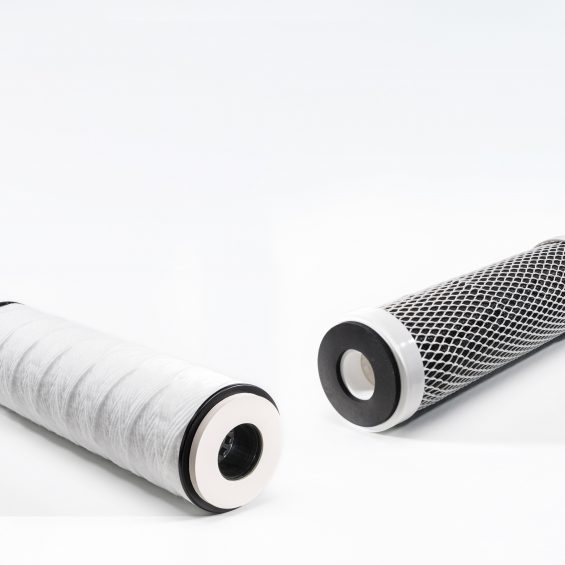

Duo Carbon Filter Cartridges
The Duo Carbon (DC) series filter cartridge is effective at reducing the chlorine taste and odour from drinking water. The Duo Carbon features a first stage wound polypropylene pre-filter to capture sediment and other impurities

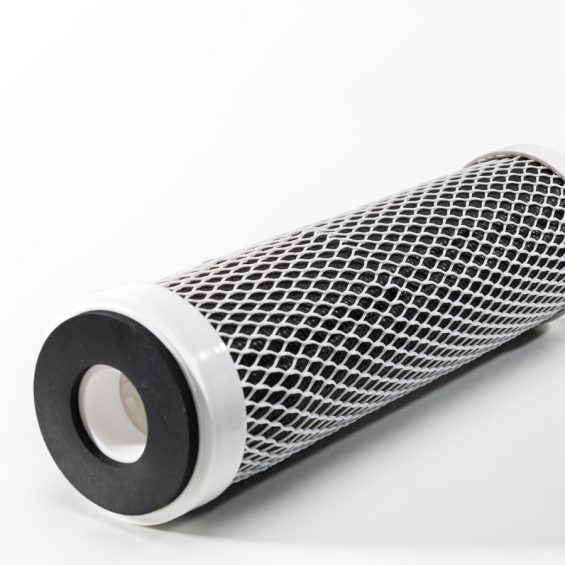

Carbon Wrap Filter Cartridges
The Carbon Wrap (CW) series features powder activated carbon (PAC) impregnated into a cellulose fibre media, removing sediments and other fine particulates throughout its depth. The CW series combines the advantages of both a high dirt-loading depth cartridge with the odour, discolouration and chlorine reduction capabilities of PAC.

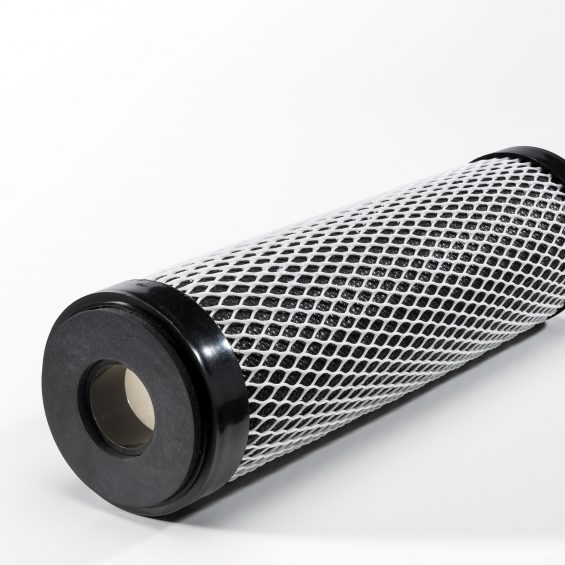

Oil Absorbent Filter Cartridges
Our range of oil absorbent filter cartridges have been developed for applications requiring removal of hydrocarbons from water.

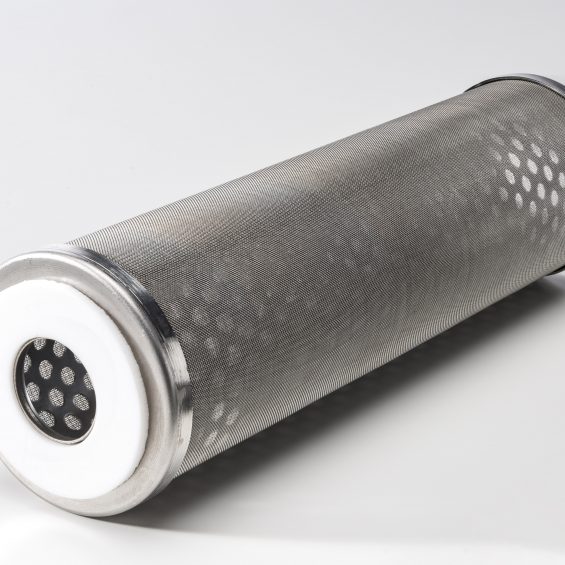

Metallic Filter Cartridges
Metallic filter cartridges are a re-usable surface filter manufactured using stainless steel wire mesh filter media. They are designed to withstand demanding working conditions as well as strong cleaning procedures such as backwash or chemical treatment.
