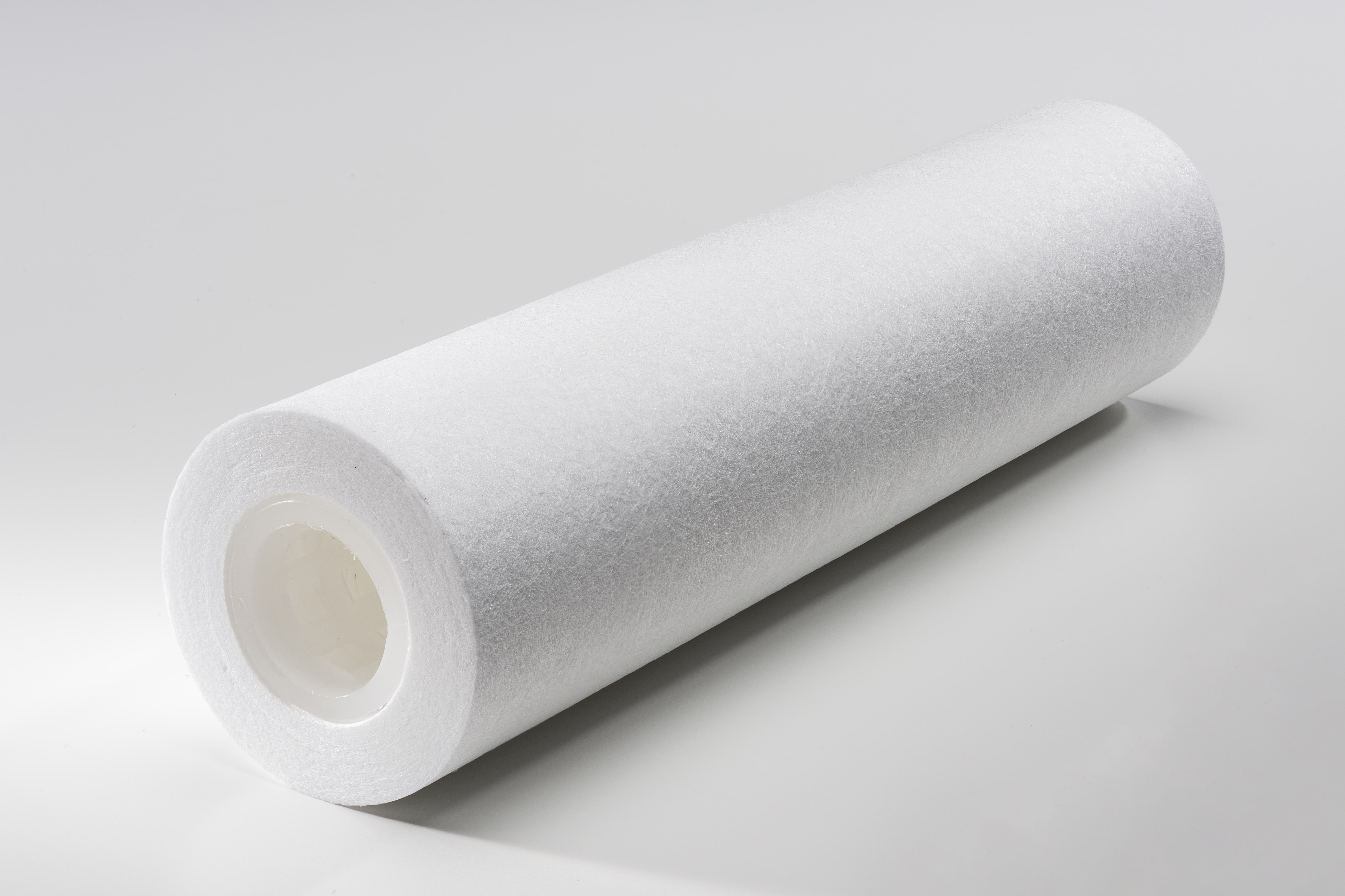

Proxis Melt Blown Cartridges

Proxis T series cartridges are nominal rated with a particle removal efficiency of 90% at the designated micron rating.

Proxis A series cartridges are absolute rated with a particle removal efficiency of 99.9% at the designated micron rating.

Proxis cartridges have a 100% polypropylene construction, and feature an inner core to enhance mechanical strength. They have a graded density structure, and have no contaminant downloading even at high differential pressures.

  • Available in a wide range of micron sizes from 0.5 – 150.
  • Standard length : 4 7/8” to 40”.
  • Custom lengths up to 60” possible.
  • Standard diameter : I.D. 27.5mm, O.D. 63.5mm.
  • Available in large 110mm diameter, 10″ and 20″ lengths for higher flow rates and dirt holding capacity.
  • Can be fitted with all industry standard end caps
  • Most commonly double open ended, but can be fitted with all industry standard end caps.
  • O-rings for end caps include Nitrile, EPDM, Silicone, Viton, PTFE encapsulated Viton, PTFE encapsulated Silicone.
  • Maximum recommended differential pressure : 2.6 Bar (1 Bar @ 82°C, 2 Bar @ 66°C, 4.2 Bar @ 24 °C).
  • Maximum recommended temperatures : 59°C – double open ended versions 82°C – all single open ended versions.
  • Cartridges will easily rinse-up to 18 Megohm-cm.
  • Toxicity: Cartridges are appropriate for use in pharmaceutical applications. Components meet USP-XXIII, Class VI criteria.
  • Purity: Proxis cartridges are made of polypropylene resin meeting FDA regulation 21 CFR 177.1520. No binders, lubricants or anti-static agents are used in the manufacturing process.

Please contact us for further information or view our range of Filter Cartridges.
