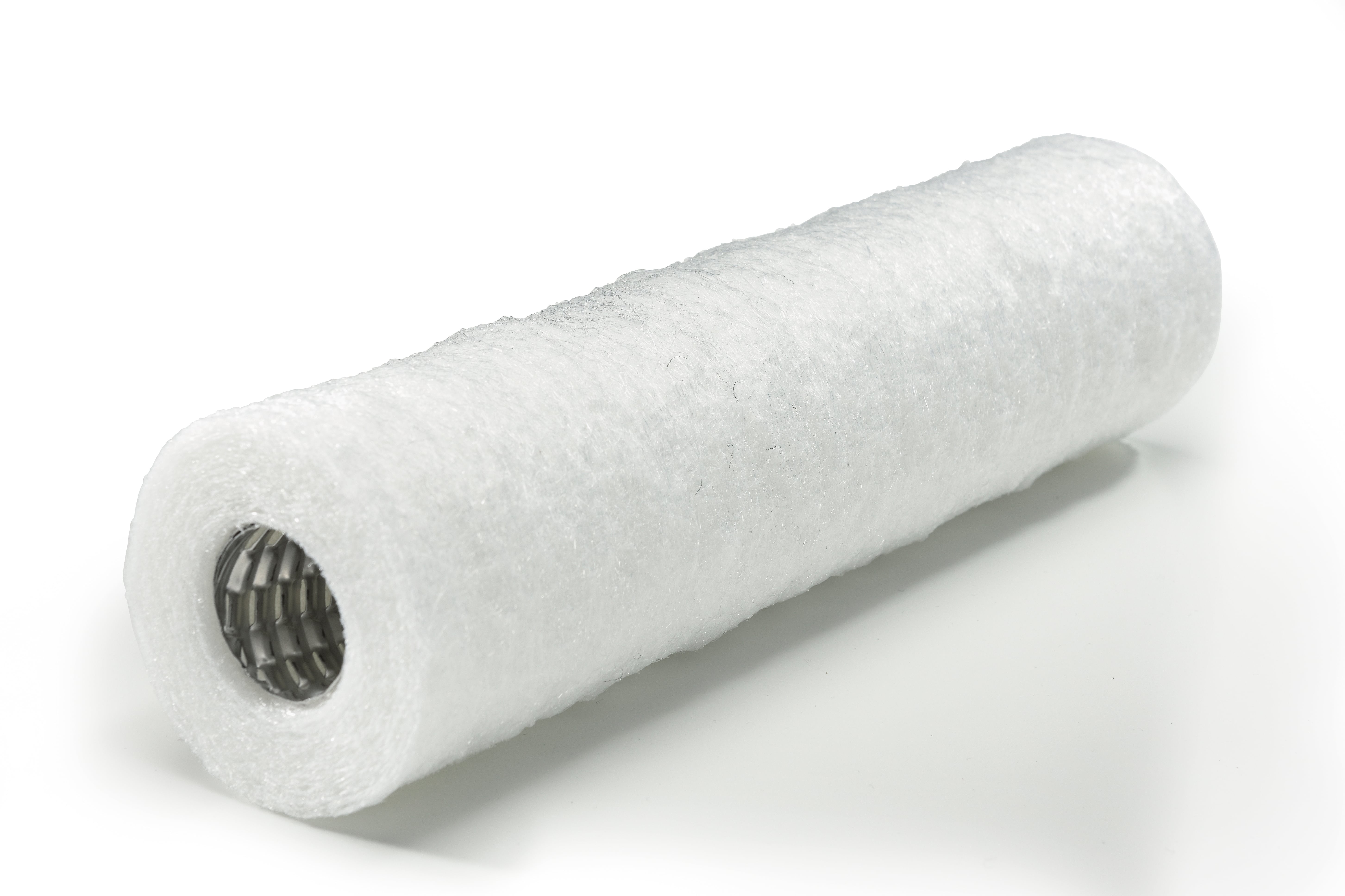

Proxis N Series Cartridges
Proxis N series cartridges are nominal rated with a particle removal efficiency of 95% at the designated micron rating.
Manufactured from 100% Nylon fibres, they are ideally suited to applications such as filtration of solvents, solvent based paints and coatings and petrochemicals. They are not recommended for use with water based products.
- Available in a wide range of micron ratings from 1 – 200.
- Standard length: 9 3/4” to 40”.
- Standard diameter: I.D. 28mm, O.D. 64mm.
- Inner core options: Nylon, Tinned steel, Stainless steel 316.
- Most commonly double open ended, but can be fitted with several industry standard end caps.
- O-rings for end caps include Nitrile, EPDM, Silicone, Viton, PTFE encapsulated Viton, PTFE encapsulated Silicone.
Please contact us for further information or view our range of Filter Cartridges.
